Boeing Globemaster III C-17

One of the world's most versatile cargo aircraft

The C-17 is capable of rapid strategic delivery of troops and all types of cargo to main operating bases or directly to forward bases in the deployment area. The aircraft can perform

tactical airlift

airdrop missions

aeromedical evacuations.

The C-17 is a stunning spectacle with its immense size.

Length: 174 feet (53,04 meters)

Wingspan: 169.8 feet (51,74 metres)

The Strategic Airlift Capability has three of the aircraft often called as the 'Moose'.

Height at tail:

55.1 feet (16,79 metres)

Empty weight:

282,500 lbs (128 140 kg)

Maximum take-off weight:

585,000 lbs (265 352 kg)

Cargo bay width:
18 feet (5,5 metres)

Cargo bay height:
14.76 feet (4,5 metres)

Boeing Globemaster III C-17

One of the most versatile cargo aircraft in the world.

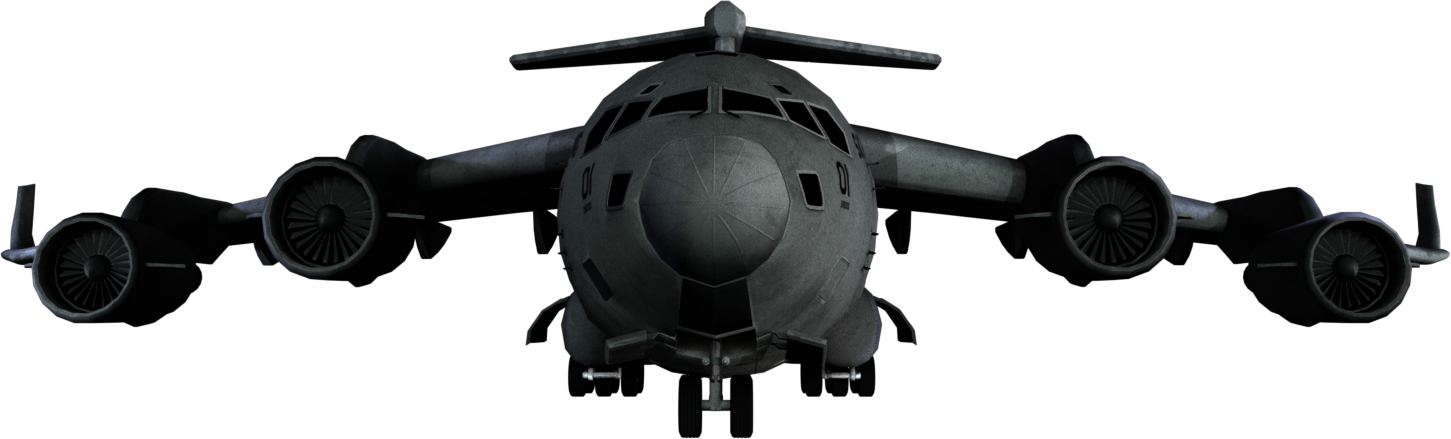

C17_RS_front

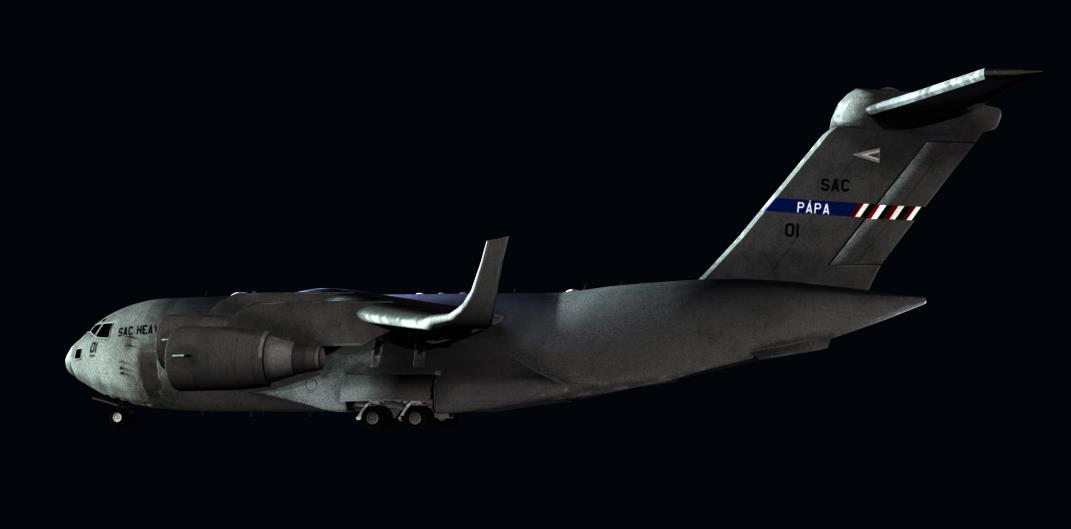

-beHQY1

The C-17 is capable of rapid strategic delivery of troops and all types of cargo to main operating bases or directly to forward bases in the deployment area. The aircraft can perform

  tactical airlift

  airdrop missions

  aeromedical evacuations

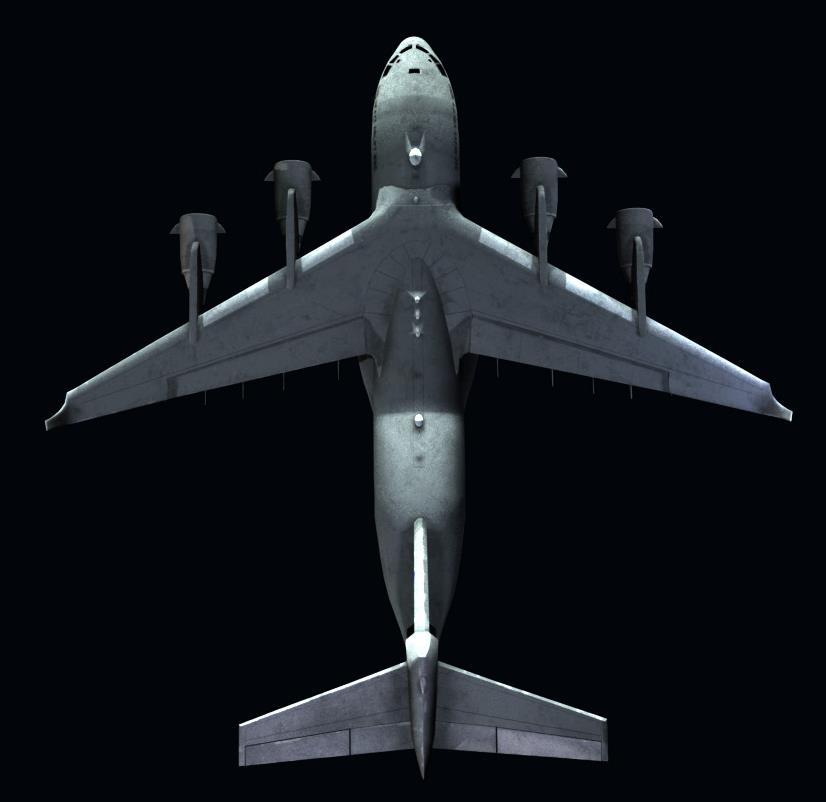

-TIeS92

The C-17 is a stunning spectacle with its immense size.

Length:

174 FEET (53,04 METERS)


Wingspan:

169.8 FEET (51,74 METRES)

The Strategic Airlift Capability has three of the aircraft often called as the 'Moose'.

Height at tail:

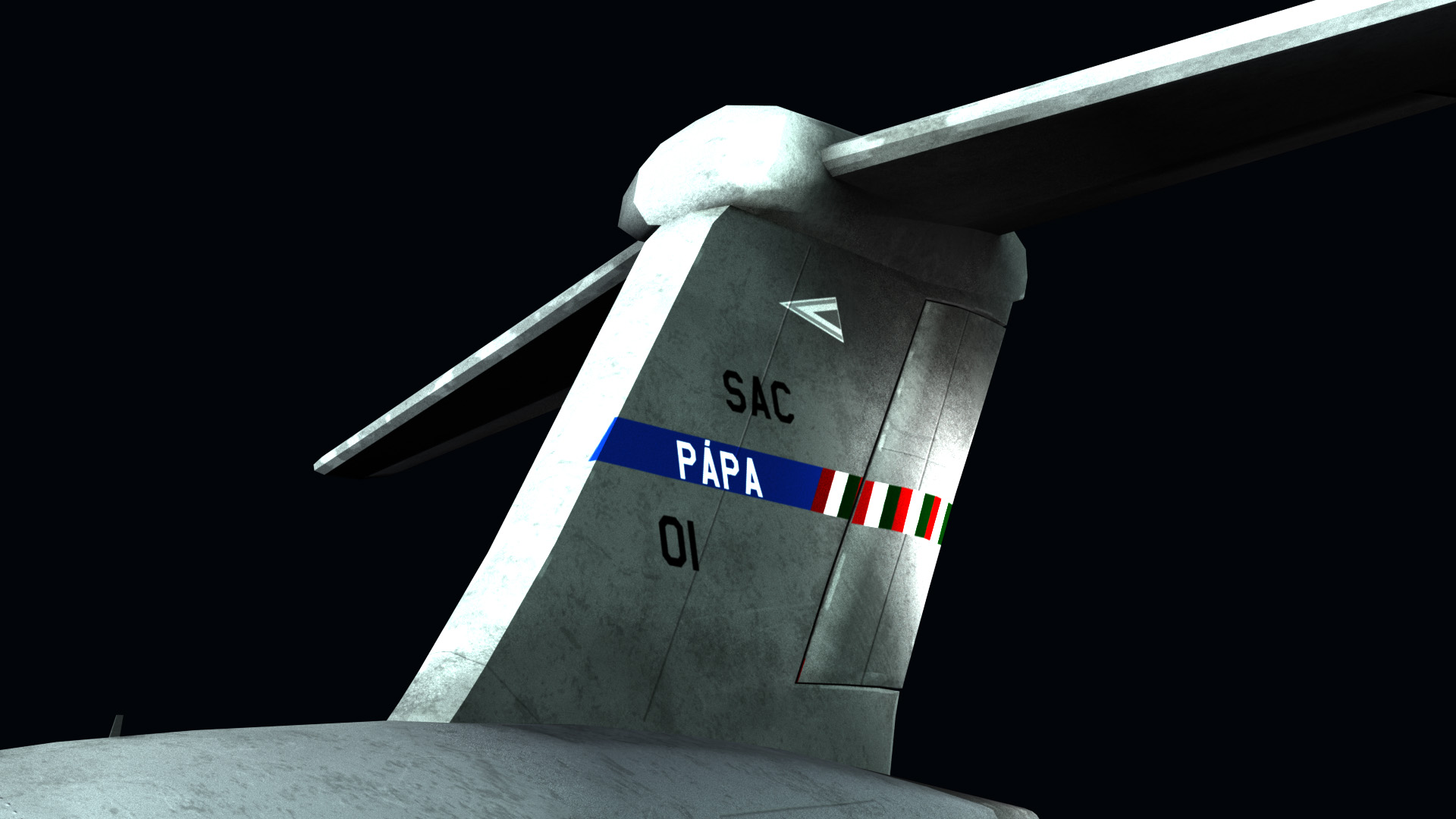

C17_RS_0161

Height at tail:

55.1 FEET

(16,79 METRES)

Empty weight:

282,500 LBS

(128 140 KG)

Maximum take-off weight:

585,000 LBS

(265 352 KG)

How big is the Moose's belly?

Payload options include:

C17_pallets

18 x 463L pallets

C17_tanks

3 Combat-ready Stryker Infantry Fighting Vehicles

C17_pax

188 Passengers

C17_paratroopers

102 Paratroopers + 8 Equipment Bundles

C17_helicopters

2 UH-60 Utility Helicopters

Who flies a C-17?

The C-17 can be operated with a minimum crew of two pilots and one loadmaster.

Depending on the demands of individual missions the crew can also be amended with other personnel such as the Flying Crew Chief (FCC), a specialist of the maintenance of the technical systems of the aircraft.

What keeps a C-17 in the air?

Four Pratt & Whitney F117-PW-100 engines with 40,440 pounds (179.9 kN) of thrust each.

C17_RS_front
C17_RS_front

WHAT MAKES A

C-17 GREAT TO FLY?

The C-17 offers its crew a modern work environment with systems that significantly reduce the workload of operating the complex aircraft. An essential part of them is the cockpit avionics suite that displays flight and systems information on four multi-function active matrix crystal displays and two Head-Up Displays (HUD) that show essential flight information.


The aircraft is controlled through an electronic flight control system that converts pilot inputs to movements of the wing and tail control surfaces.


When there is a need to operate in an environment with low level of light the crew can use Night Vision Goggles (NVG) that enable them to see in conditions approaching total darkness.
